Inicio /Productos/Máquina que prensa de la manguera de goma/Building Material Stores Customized 1/8inch To 2 3/8inch Hydraulic Semi Automatic Pipe Crimping Machine

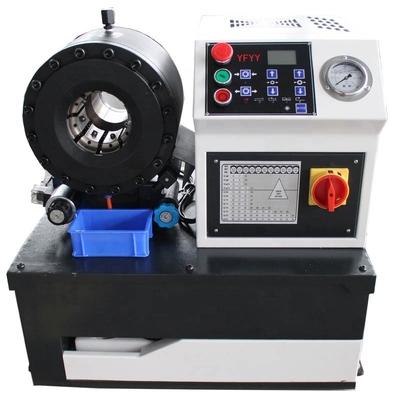

Building Material Stores Customized 1/8inch To 2 3/8inch Hydraulic Semi Automatic Pipe Crimping Machine

1 Piece
MOQ
$4,200.00(1 - 2 Pieces) $3,900.00(3 - 9 Pieces) $3,699.00(>=10 Pieces)
Precio
Building Material Stores Customized 1/8inch To 2 3/8inch Hydraulic Semi Automatic Pipe Crimping Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Available
Marketing Type: hot product 2021
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Motor, Pump
Machine Type: Hose Crimping Machine
Voltage: 380V/220V/110V/415V/400V/480V...
Dimension(L*W*H): 600*450*600mm
Weight: 225KG
Warranty: 1 Year
Power (kW): 225
Key Selling Points: Easy to Operate
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Product name: hydraulic hose Crimping Machine
Mould dies quantity: 8 Sets
Drives Power: 4KW
Max openning: 21mm(5/16")
System pressure: 31.5 Mpa
Control: Digital Control System
opening without diews: 96mm(3 4/5")
Crimping Range: 3-61mm(1/8 to 2 3/8")
Max crimp capacity: 1 1/2" 4SP (ID 38MM)
Master die length: 70mm
After Warranty Service: Online support, Spare parts
Local Service Location: None
Certificación: IATF16949,CE
Información básica
Certificación: IATF16949,CE
Pago y Envío Términos
Packaging Details: 650mm * 500mm*700mm packed in wooden carton
Descripción de producto
Product Description
Specification
item
Hose Crimping Machine
Place of Origin
China
Shandong
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Available
Marketing Type
hot product 2021
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Motor, Pump
Brand Name
QDGY
Machine Type
Hose Crimping Machine
Voltage
380V/220V/110V/415V/400V/480V...
Dimension(L*W*H)
600*450*600mm
Weight
225KG
Certification
IATF16949,CE
Warranty
1 Year
Power (kW)
225
Key Selling Points
Easy to Operate
After Warranty Service
Online support, Spare parts
Local Service Location
None
Showroom Location
None
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Product name
hydraulic hose Crimping Machine
Mould dies quantity
8 Sets
Drives Power
4KW
Max openning
21mm(5/16")
System pressure
31.5 Mpa
Control
Digital Control System
opening without diews
96mm(3 4/5")
Crimping Range
3-61mm(1/8 to 2 3/8")
Max crimp capacity
1 1/2" 4SP (ID 38MM)
Master die length
70mm

Machine Head

Attribute: Forge Steel
Original: Germany Technology
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°,
hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection
Original: QDGY(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and
die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Electromagnetic Valve

Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The
reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking
Control Panel
Attribute: CNC Operation Panel
Original: China(Mainland)
QDGY MM-80 crimping machine has equipped with computer numerical control operation panel which is more humanized than the
ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.
Specification of Dies(High pressure dies)
NO.
Ø15
Ø18
Ø20
Ø23
Ø26
Ø29
Ø36
Ø46
Ø51
Crimping Range
15-17mm
18-20mm
20-22mm
23-25mm
26-28mm
29-35mm
36-45mm
46-55mm
61-61mm
Length
65mm
65mm
65mm
65mm
65mm
65mm
70mm
70mm
70mm
Application of hydraulic hose crimping machines:
The machine is widely used in engineering machinery ,oil fields, steel mills ,ship manufacturing, agricultural machinery ,coal and other industries.
Packing & Delivery
Packing Size：690(L) * 540 (W) * 740 (H)
Gross Weight： 235KGS
Delivery：
1. The normal models of crimping machines are in stock, they can be delivered once the payment is finished.
2. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.
3.Transportation,the first choice is shipping, air or land is also avaliable if customers have special request.

Company Profile
Qingdao Guosong Machinery Parts Co., Ltd. was founded in 1998. Our company has been expanded to the leading brake hose hydraulic hose and Crimping Machine manufacturer in China. We have more than 300 staff members. Our building covers 6,000 square meters. We have Marketing Department, a Hose Factory and a Fitting Factory. Our main products are QDGY brand rubber brake hoses (3.2mmx10.5mm) which are produced according to American standards SAEJ1401 and also passed the quality test of China National Auto Testing and hose crimping machine . We get DOT certification. Our crimping machine is CE certificate machines. Our company has ISO9001:2000 and TS16949:2009 quality management system certifications. To provide our customers with the best products at the most reasonable price, we are ready to do innovation. We have imported modern production lines from Japan and adopted American and Italian techniques and skills. Our senior scientific and technological experts, advanced R&D Lab and testing equipment make our products perfect. Our QDGY brake hoses, hose assembly and fittings are manufactured with a variety of superior materials to meet various requirements of Automobile and Motorcycle Industries, especially in aftermarket. They are used in ISUZU, SUZUKI, YAMAHA, KAWA-SAKI, HONDA, MITSUBISHI, NISSAN, TOYOTA, ALTO, FLAT, FORD, CHRYSLER, CHEROKEE, AUDI, PEUGEOT, BMW, VW, IVECO, CHEVROLET, CITROEN and VOLVO cars. 90% of our products are exported to Europe, the USA and Southeast Asia. We have won a high reputation among clients. Our mission is continuously improving the quality of our products and sales service to make QDGY brand become one of the most famous brands in the world. You're welcome to visit our homepage to learn about our company and our products. For any further information, our staff members will reply you immediately. You are welcome to contact us now and get more benefits.
FAQ
1. who are we?
We are based in Shandong, China, start from 1998,sell to North America(15.00%),South Asia(13.00%),Northern Europe(12.00%),Eastern Europe(12.00%),Oceania(10.00%),Central America(10.00%),Domestic Market(9.00%),Western Europe(6.00%),Africa(5.00%),Mid East(2.00%),South America(2.00%),Eastern Asia(2.00%),Southern Europe(1.00%),Southeast Asia(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Brake Hose,Brake Hose Assembly,Brake hose Fitting,Nylon Stainless Steel Braided Brake Hose,Teflon Stainless Steel Braided Brake Hose and Hose ,air brake hose and hydraulic hose and Crimpin gmachine

4. why should you buy from us not from other suppliers?
QDGY is established in 1998 QDGY have more than 20 years production and sale experience for OEM QDGY products are exported more than 60 countries QDGY get ISO9001,TS16949,DOT certificate Products quality and delivery in timeis the fist in QDGY

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Hose Crimping machine FAQ as follows:
1.What's the difference of your machine with others?
A: FORGE Steel machine head, 3 times stronger than general machine.
CNC operation system, high crimp accuracy which is within 0.01mm.
2. Are you the manufacturer or trading company?
A: We are the manufacturer for crimping machine over 20 years, since 1992.
3.What about the price?
A: Competitive price, the advanced technology and high quality you ever have.
4.Why we choose QDGY?
A: CE & IATF certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.
5. What is the MOQ?
A: We would like to provide 1 set for you test.
6. If I can not find the machine which I need,what should I do?
A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.

HOSE CRIMPING MACHINE REQUIREMENT ,PLEASE CONTACT RITA: empolder(at)qdgybrakehose(dot)com
0086-15066792971
